pyestimate.multiple_sin_param_estimate

pyestimate.multiple_sin_param_estimate(x, p, freq=None, brute_Ns=100, detrend_type='constant')

Estimate the parameters of multiple sinusoids (amplitudes, frequencies and phases). The signal model is \(s[n] = \sum_{i=1}^{p} A_i \cos(2 \pi f_i n + \phi_i)\).

In the presence of white gaussian noise, the estimator implemented is the maximum likelihood estimator.

Parameters:

xarray_like

A 1-D input sequence of real numbers.

pint

Number of sinusoids to be estimated.

freqsequence of p floats, optional

Digital frequency of the input sinusoids (freq = F/Fs if F are the analog frequencies and Fs is the sampling frequency). If freq is None or is not given, the frequencies are estimated.

brute_Ns: int, optional

Number of points to be used for the brute force search. Increase if frequency resolution is too coarse, decrease to speed-up.

detrend_type: {‘linear’, ‘constant’}, optional

Specifies how to detrend the input sequence. It is passed as the type argument to the scipy.signal.detrend function. Default to constant.

Returns:

A: list of floats

Estimated amplitude of the sinusoids (> 0).

f: list of floats

Estimated digital frequencies of the sinusoids (or input frequencies if freq was given as input parameter), in ]0, 0.5[.

phi: list of floats

Estimated phases of the sinusoids, in [-pi, pi].

Notes

The estimator is the maximum likelihood estimator (MLE) for sinusoids in white gaussian noise. Due to the use of a brute force optimization, it can only be used for a limited number of sinusoids (typically up to 5).

References

[1]

Kay, S. M. (1997). Fundamentals of Statistical Signal Processing: Estimation Theory. Prentice Hall.

Examples

Generate a sum of noisy sinusoids for which we want to estimate amplitudes, frequencies and phases

>>> from pyestimate.estimators import multiple_sin_param_estimate
>>> import numpy as np
>>> import matplotlib.pyplot as plt
>>> N = 40 # number of samples
>>> f = [0.123456, 0.103456] # frequencies to be estimated
>>> A = [1.23456, 1.34567] # amplitude to be estimated
>>> phi = [0.0, np.pi/4] # phase to be estimated
>>> p = len(A) # number of sinusoids
>>> sigma = 1.0 # standard deviation of WGN
>>> n = np.arange(N)
>>> s = 0.0
>>> for i in range(p):
>>>     s += A[i] * np.cos(2*np.pi*f[i]*n+phi[i]) # original signal
>>> w = np.random.default_rng(seed=0).normal(scale=sigma, size=N) # white gaussian noise
>>> x = s+w # input signal for estimation: sine + noise

Estimate sinusoid parameters

>>> A_hat, f_hat, phi_hat = multiple_sin_param_estimate(x, p) # parameters estimation

Reconstruct original signal from estimated parameters

>>> s_hat = 0.0
>>> for i in range(p):
>>>     s_hat += A_hat[i] * np.cos(2*np.pi*f_hat[i]*n+phi_hat[i]) # estimated signal

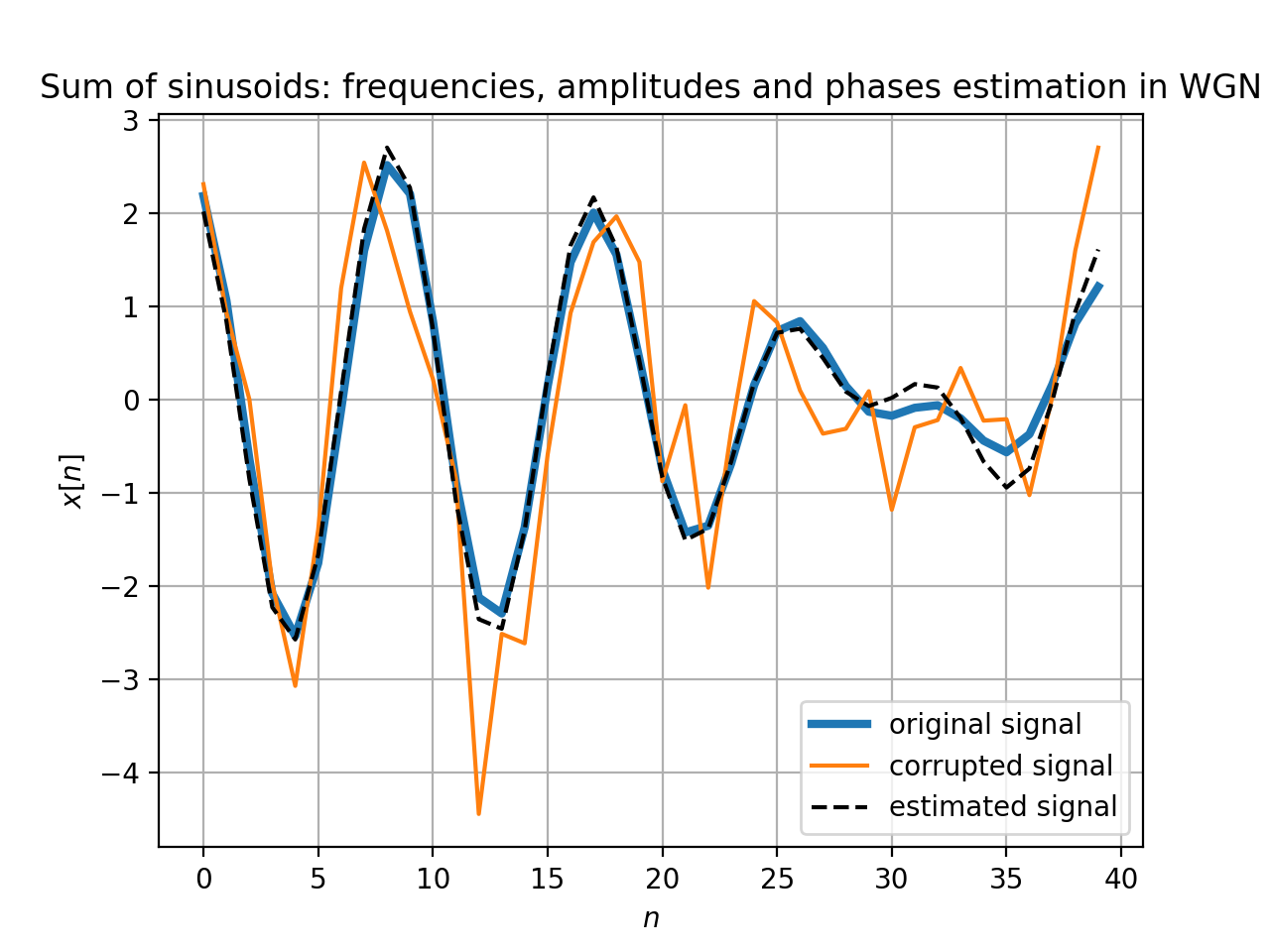

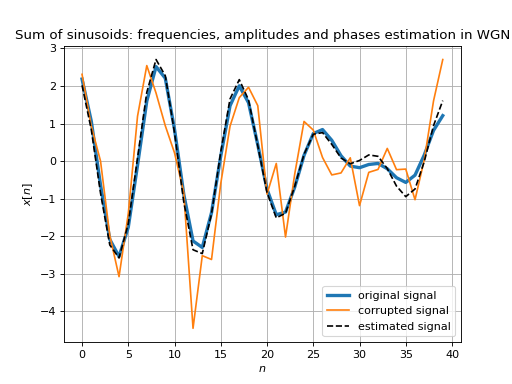

Plot the original signal, the input signal corrupted with noise and the reconstructed signal

>>> plt.plot(n, s, linewidth=3.0, label='original signal')
>>> plt.plot(n, x, label='corrupted signal')
>>> plt.plot(n, s_hat, 'k--', label='estimated signal')
>>> plt.xlabel('$n$')
>>> plt.ylabel('$x[n]$')
>>> plt.title('Sum of sinusoids: frequencies, amplitudes and phases estimation in WGN')
>>> plt.legend()
>>> plt.grid()
>>> plt.show()

(Source code, png, hires.png, pdf)
